Transformer Components

• Capacity
• as per requirement

• Cooling Type
• Natural Air Cooling

• Dimension (L*W*H)
• Varies by rating, standard sizes available

• Efficiency
• High

• Frequency (MHz)
• 50 Hz

• High Voltage
• 33 kV (Max.)

• Load Loss
• Zero (Not applicable for Insulators)

• Low Voltage
• 11 kV (Min.)

• Material
• Porcelain

• Operating Temperature
• -40C to +60C

• Output
• Insulation

• Phase
• Other, Single Phase/Three Phase

• Power Scope
• Up to 33kV

• Product Type
• Other, Pin Insulator

• Rated Voltage
• 11 kV, 22 kV, 33 kV

• Standard
• IS 731

• Usage
• Electrical Power Distribution

• Weight
• 1 kg - 5 kg (Approx.)

• Capacity
• Standard as per Line Requirement

• Dimension (L*W*H)
• Standard/Custom as per specification

• Efficiency
• High

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Low Voltage
• As per application

• Material
• Galvanized Iron (GI) & Mild Steel (MS)

• Operating Temperature
• -25C to +55C

• Phase
• Three Phase

• Power Scope
• 11 kV application

• Product Type
• Other, Top Hamper

• Rated Voltage
• 11 kV

• Standard
• IS: 2062, IS: 2633, IS: 4759

• Usage
• For 11KV Distribution and Transmission Lines

• Weight
• 4-7 kg (approx.)

• Capacity
• Standard Earthing Capacity

• Coil Structure
• Other, Solid Rod

• Cooling Type
• Ambient Air

• Dimension (L*W*H)
• Diameter: 16-40 mm, Length: 1-3 m (customizable)

• Efficiency
• High Conductivity

• High Voltage
• Up to 11 kV

• Low Voltage
• As per system requirement

• Material
• Galvanized Iron (GI) / Mild Steel (MS)

• Operating Temperature
• -10C to +55C

• Phase
• Other, Single & Three Phase Applications

• Power Scope
• Suitable for Electrical Installations

• Product Type
• Other, Earthing Rod

• Rated Voltage
• Up to 11 kV

• Standard
• IS 3043/ BIS Certified

• Usage
• Earthing Protection

• Weight
• 5-12 kg (varies by length and diameter)

• Capacity
• Depends on configuration

• Coil Material
• Other , Steel, galvanized

• Coil Number
• Other, Usually 7 or 19 strands

• Coil Structure
• Other, Stranded

• Dimension (L*W*H)
• Diameter typically 7 to 16 mm

• Efficiency
• High mechanical strength

• Material
• Galvanized steel

• Operating Temperature
• -10C to 55C

• Product Type
• Other, Stay Wire

• Standard
• IS: 2141 or equivalent

• Usage
• Electrical transmission line support

• Weight
• Varies based on gauge and length

• Capacity
• Standard fitting for stay rods up to 16 mm dia

• Dimension (L*W*H)
• Standard size as per utility specification

• High Voltage
• Applicable up to 33 kV

• Low Voltage
• Applicable for LT/HT lines

• Material
• Galvanized Iron (GI)

• Operating Temperature
• -20C to +70C

• Product Type

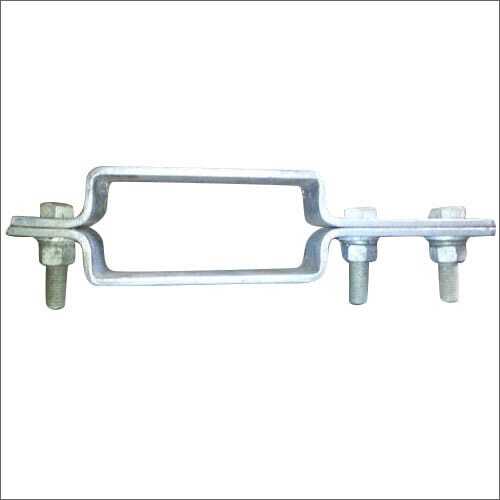

• Other, Stay Clamp (PCC Type)

• Rated Voltage
• Up to 33 kV systems

• Standard
• IS 2486 (Part 1 & 2)

• Usage
• Stay wire fitting for overhead transmission lines

• Weight
• Approx. 400-600 grams per set

• Capacity
• Standard insulation level for mentioned voltage classes

• Cooling Type
• Air Cooled / Ambient Cooling

• Dimension (L*W*H)
• Approx. 255mm (Diameter) x 130mm (Height)

• Efficiency
• High dielectric strength, pollution resistant

• Frequency (MHz)
• 50-60 Hz

• High Voltage
• 33kV (max)

• Load Loss
• Negligible/Low (non-conductive component)

• Low Voltage
• 11kV (min)

• Material
• Silicone Rubber (Polymer)

• Operating Temperature
• -40C to +50C

• Phase
• Three Phase

• Power Scope
• 11kV to 33kV

• Product Type
• Other, Polymer Disc Insulator

• Rated Voltage
• 11kV / 22kV / 33kV

• Standard
• IS 14286:1995, IEC 61109

• Usage
• Outdoor insulation for high voltage transmission lines

• Weight
• 2.5 - 3.5 kg approx per disc

• Capacity
• Standard as per Application

• Cooling Type
• Air Cooled (Ambient)

• Dimension (L*W*H)
• Standard/Customized

• Efficiency
• High Conductivity

• Frequency (MHz)
• 50 Hz

• High Voltage
• Up to 33kV

• Low Voltage
• Up to 440V

• Material
• Galvanized Iron (GI) and Mild Steel (MS)

• Operating Temperature
• -20C to +65C

• Phase
• Other, Single/Three Phase Compatible

• Power Scope
• Up to 33kV

• Product Type

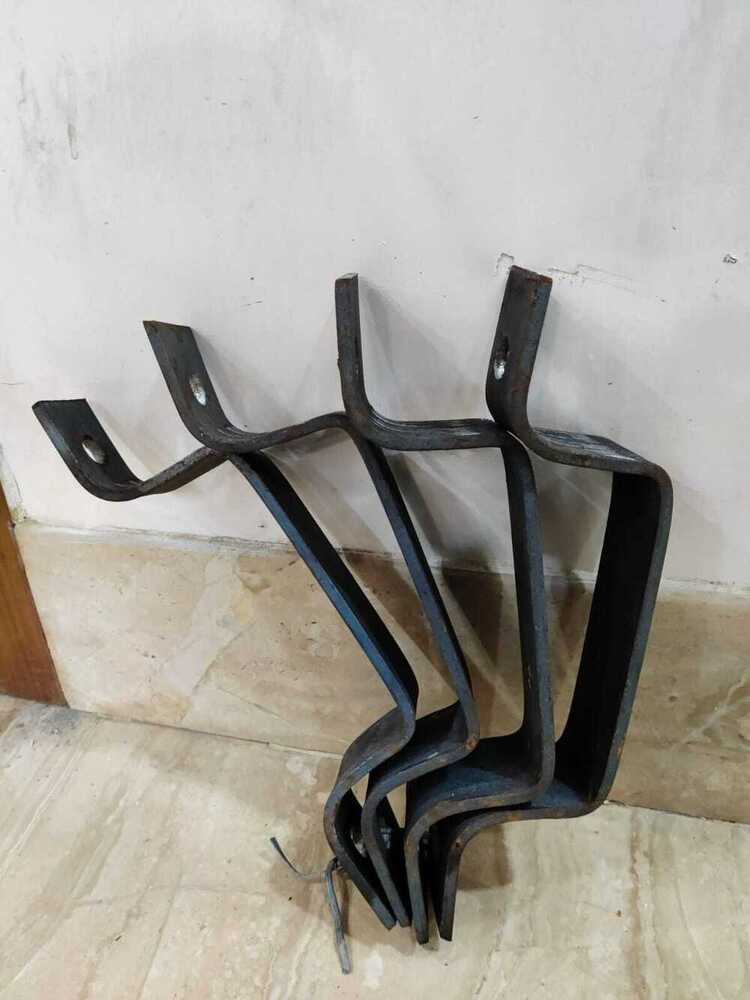

• Other, PCC Clamp

• Rated Voltage
• 110V/220V/440V

• Standard
• IS 5561, IS 2629

• Usage
• Electrical Power Distribution and Transmission Applications

• Weight
• Approx. 200-350g (Depending on Size)

• Capacity
• As per IS: 802 standard

• Dimension (L*W*H)
• Approx. 1000 mm x 75 mm x 6 mm (customized sizes available)

• High Voltage
• Up to 33 kV

• Material
• Mild Steel (MS) / Hot dip galvanized steel

• Operating Temperature
• -10C to 55C

• Product Type
• Other, V Cross Arm Angles Shape

• Rated Voltage
• Up to 33 kV (typical)

• Standard
• IS: 802

• Usage
• Transmission line support/utility structure fitting

• Weight
• Approx. 8 to 18 kg (varies by size)

• Capacity
• Customizable

• Dimension (L*W*H)
• Customizable, based on height and design

• Efficiency
• High

• Frequency (MHz)
• 50-60

• High Voltage
• Up to 220 kV

• Low Voltage
• 120/240 V

• Material
• Galvanized Iron (GI), Mild Steel (MS)

• Operating Temperature
• -40C to +55C

• Phase
• Three Phase

• Power Scope
• Up to 220 kV

• Product Type
• Other, Tower Structure

• Rated Voltage
• 120/240 V - 220 kV (as per application)

• Standard
• IS 2062, IS 4759, ASTM A 123

• Usage
• Communication Tower, Transmission and Distribution

• Weight
• Depending on height and configuration
